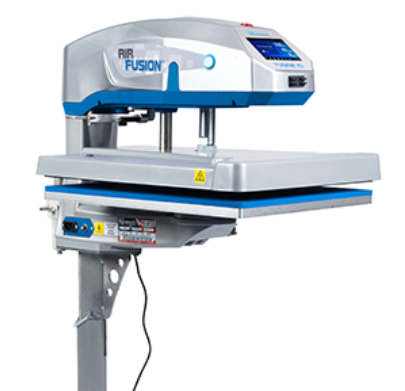

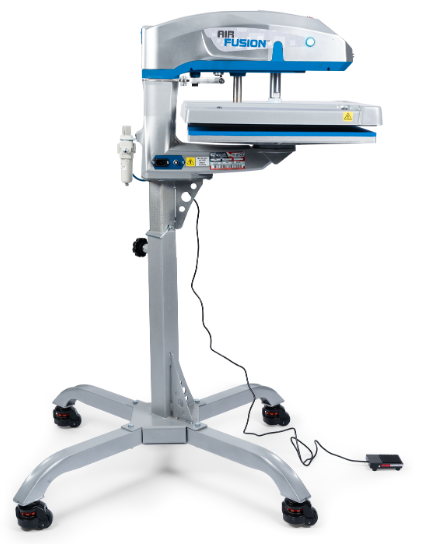

Hotronix Air Fusion IQ Heat Press with FLOOR CADDIE

Smarter Air-Powered Technology. Faster Production.

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16" x 20" heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

• New Fusion IQ™ controller features troubleshooting and self-diagnostic capabilities
• Track performance and print productivity reports from anywhere with the new Hotronix Online Portal
• New larger, higher resolution screen with improved touchscreen response
• Exclusive Auto-Adjust Pressure™ automatically adjusts to the thickness of the item being printed
• Full Threadability™ on the lower platen: position the garment, rotate, and decorate any area
• Auto open, auto swing design, with a foot pedal reduces fatigue
• Swing motion allows for a heat-free workspace
• Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
• Data interface port allows for future software upgrades
• User-safe two-hand push-button operation
• 120 PSI for high-pressure applications
• Optional quick-change platens; no tools required
• Program up to four different pressure and time settings
• Die pressure cast 365 aluminum corrosion-free framework
• Requires air compressor (not included) with minimum: ½ horsepower and 2.5-gallon hold tank. Uses 2.3 CFM
• Electrical: 120 v; 15 amps; 1800 w240 v; 7.5 amps; 1800 w
• Must have dedicated circuit breaker
• Actual weight: 152 lbs.
• Ship weight: 245 lbs.
• Actual dim: 40" x 32" x 57"
• Ship dim. 40" x 48" x 58"
